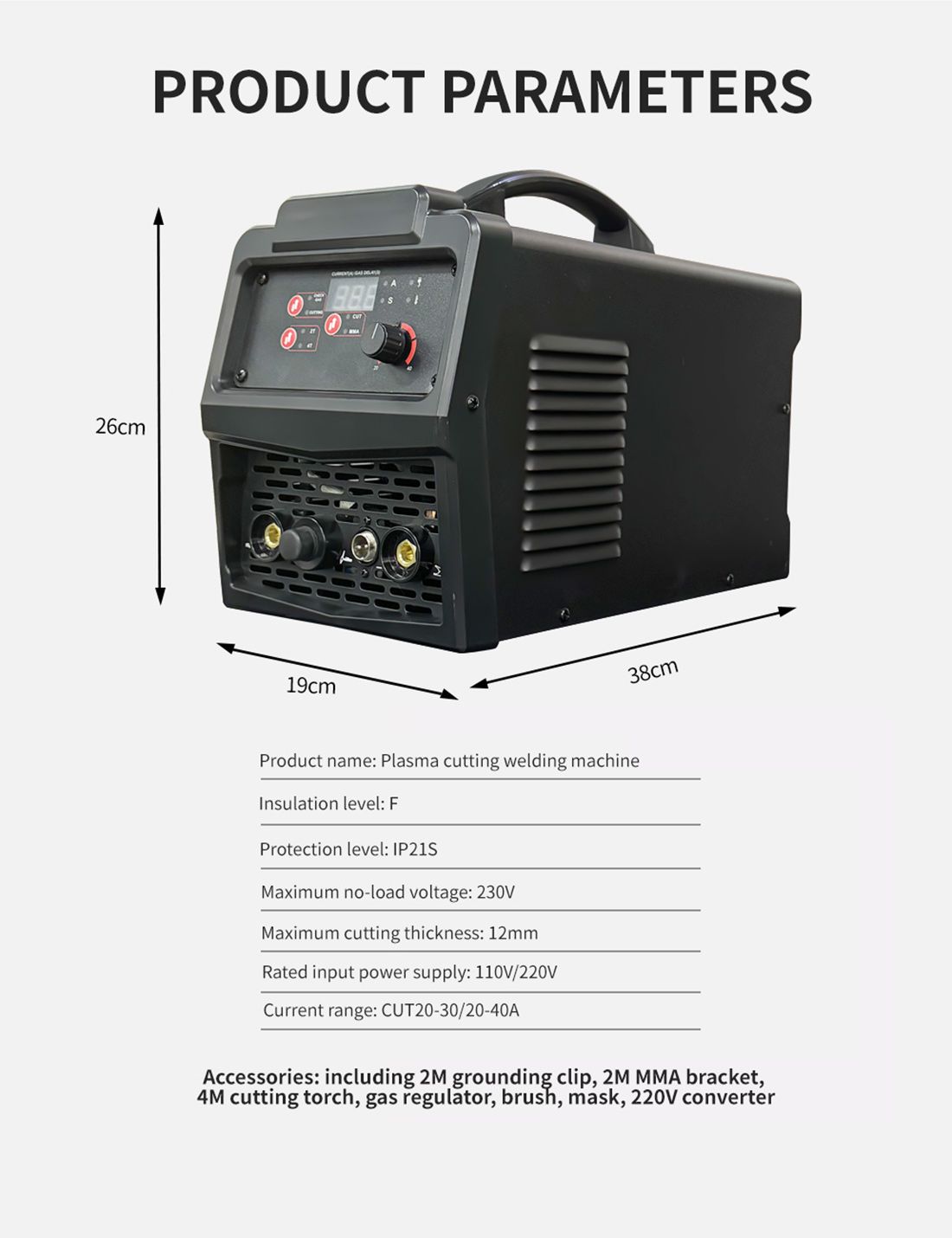

| Specification | Description |
|---|---|
| Product Name | Plasma Cutting Welding Machine |
| Insulation Level | F |
| Protection Level | IP21S |
| Maximum No-load Voltage | 230V |
| Maximum Cutting Thickness | 12mm |
| Rated Input Power Supply | 110V / 220V |
| Current Range | CUT 20-30A / 20-40A |
Technology innovation
- Equipped with IGBT smart chip, it can realize seamless switching between MIG welder and plasma cutter
- 110V/220V dual voltage adaptive system, supports continuous operation of multi-function welder without tripping
- Seven-blade heat dissipation structure is IP21S certified, and the continuous welding time is increased to 6 hours
Industrial-grade metal processing equipment
This machine integrates MIG welding and plasma cutter welder functions, and can handle 12mm carbon steel plate cutting and 4mm stainless steel continuous welding. It adopts the same high-frequency arc ignition technology as the Hypertherm Powermax series, and the switching mode response speed is 40% faster than conventional equipment.
Standard configuration list
- 4m cutting gun (with anti-scalding chuck)
- 2m MMA welding handle cable (all copper interface)
- Gas flow regulator (compatible with Ar/CO₂)
- Protective mask and cleaning tool set
Customized production capabilities
| Adjustable parameters | Technical indicators |
|---|---|
| Input voltage | 110V/220V (in line with US/Middle East standards) |
| Wire diameter | 0.8-1.2mm (compatible with ESAB welding wire specifications) |
| Cutting thickness | Carbon steel 6-12mm (optional high-temperature alloy nozzle) |
Process performance parameters
- Cutting surface roughness ≤30μm (Ra value)
- No-load voltage fluctuation ±5V (better than EN 60974 standard)
- Intelligent temperature control system can still work stably at an ambient temperature of 45℃
Global service system
Bonded warehouses are set up in Sao Paulo, Brazil and Muscat, Oman, providing: • 48-hour fault diagnosis response • Localized parts supply (covering Vietnam/Thailand/Malaysia) • Operator certification training (including multilingual video tutorials)
Bulk purchase policy
Basic order: 10 units (support MIG plasma cutter and conventional welding machine mixed installation) Customized order: 50 units (exclusive product coding system) Annual agreement: Quarterly price lock + free warehousing for 30 days
Key market verification
The product has passed the TÜV Rheinland 800-hour durability test and has been used in batches:
- Saudi Jeddah Port container repair workshop (annual purchase volume 120 units)
- Warsaw auto parts factory in Poland (cutting yield 98.7%)
- Pune Metal Processing Industrial Park in India (welding efficiency increased by 35%)
Statement: The brand names such as Hypertherm and ESAB involved in the article belong to their owners. Qing Yang® equipment technical parameters are based on our own laboratory test data.
