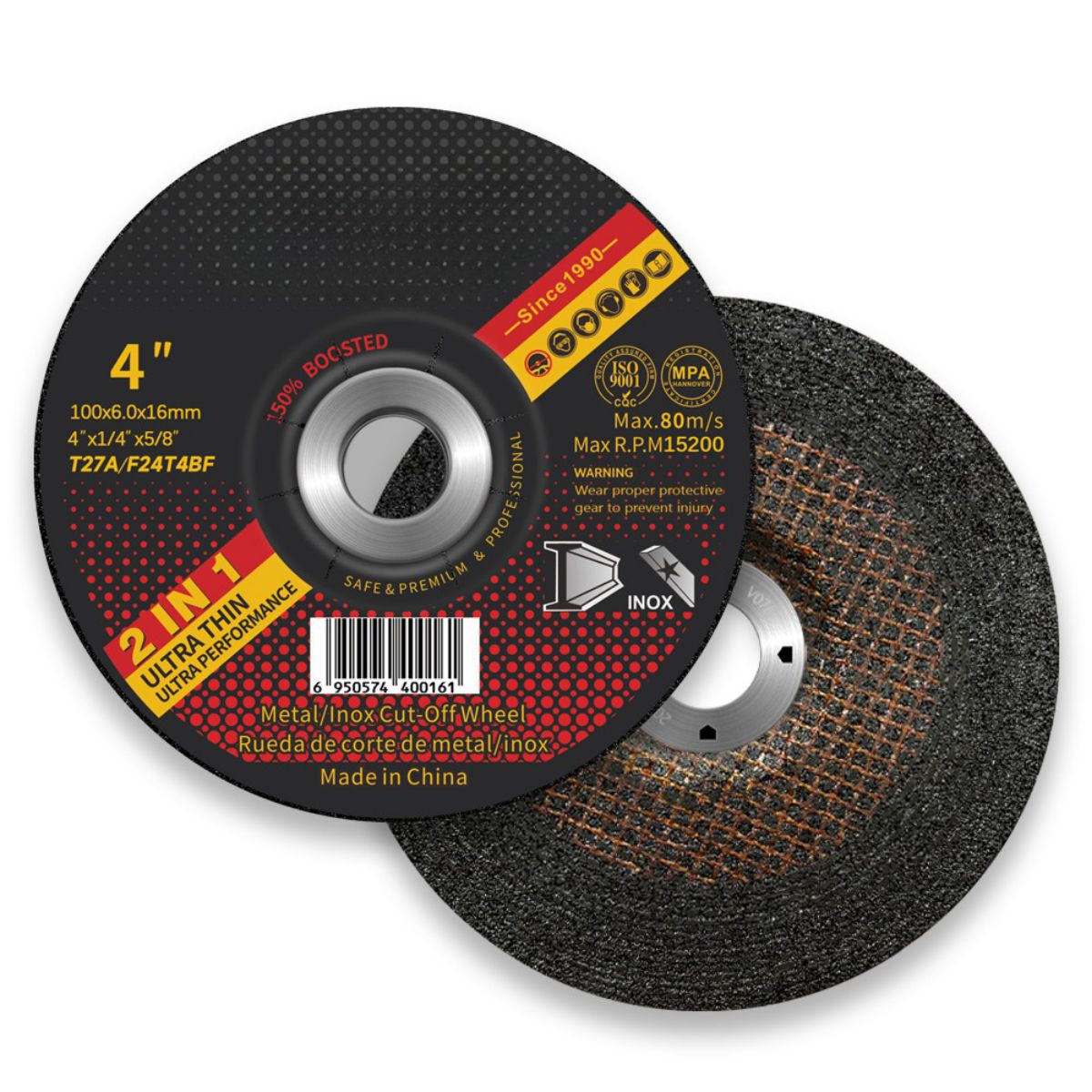

4 Inch Grinding Wheel | 100mm Metal Grinding Disc

Google reCaptcha: Invalid site key.

Specification Details

  • Product name:4'' x1/4'' x5/8'' Grinding Wheel
  • Type:T27
  • Outer Diameter:100mm (4")
  • Thickness:6.0mm (1/4")
  • Aperture:16mm (5/8")
  • Speed Rating:80m/s
  • Maximum RPM:15,200
  • Customized Support:OEM, ODM
  • Available Options:Samples, Various Colors

Qing Yang® Professional Grinding Wheels Manufacturer – B2B Industrial Solutions

grinding wheels wholesale

Advantages

  • ​Precise Thickness Control​​: 6.0mm standard thickness design, balanced cutting depth and stability, suitable for T27 specification industrial scenarios

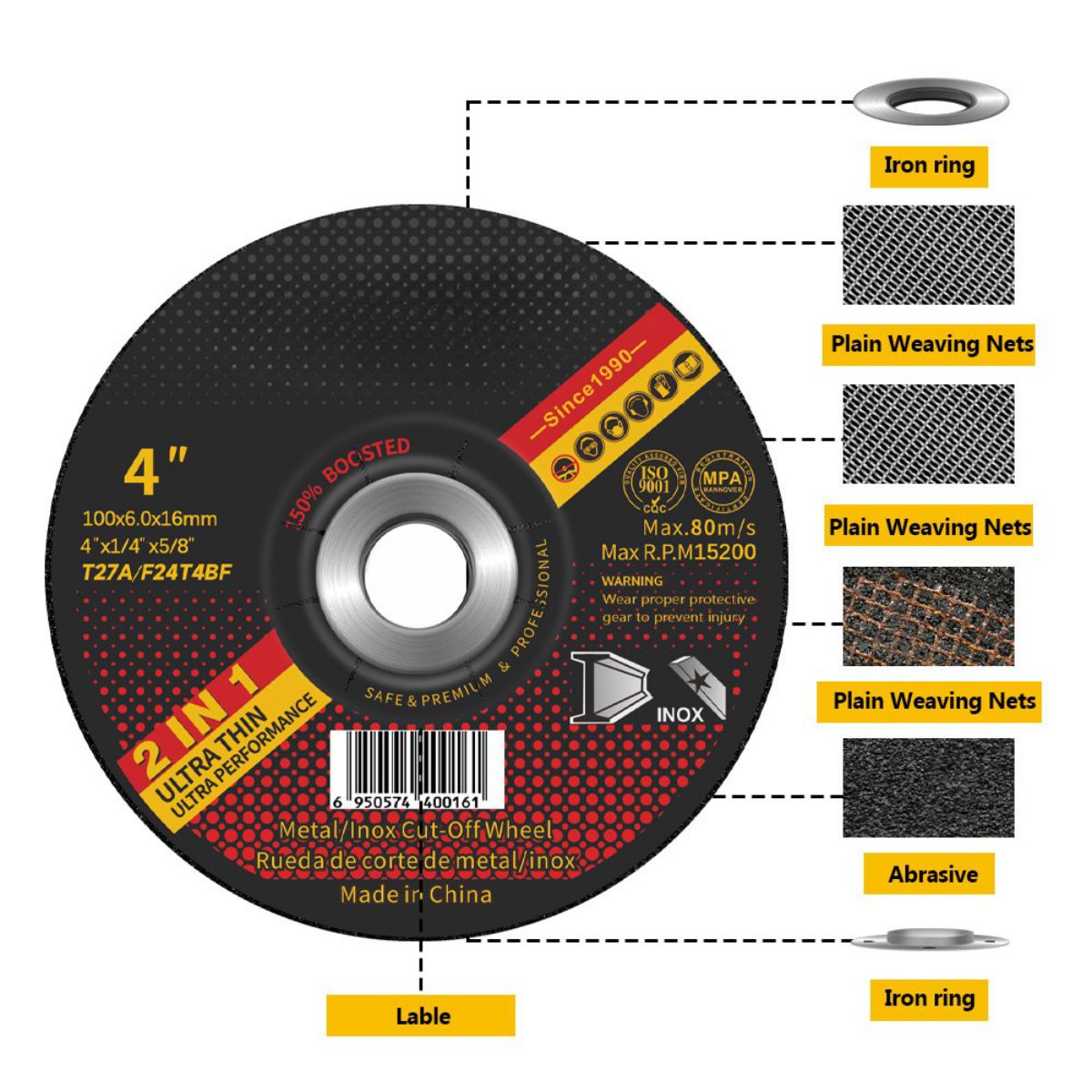

  • ​Multi-layer fiber reinforced structure​​: Double glass fiber mesh reinforced base, breaking speed up to 80m/s, in line with EN12413 safety standards
  • ​Multi-material compatibility​​: Alumina abrasive formula can handle carbon steel, stainless steel and alloys, with the same level of process as Norton grinding wheels
4 inch grinding wheel

Application

Qing Yang®’s 100×6.0x16mm grinding disc is designed for metal processing and building maintenance, suitable for:

  • Weld seam removal of steel structures
  • Surface leveling of pipes
  • Edge finishing of mechanical parts
  • Masonry grinding
Cut-Off Wheel Applications

Technical parameters and customized services

SpecificationsStandard values ​​Customized range
Outer Diameter100mm (4 inches)75-230mm
Thickness6.0mm (1/4 inches)3.0-25.4mm
Aperture16mm (5/8 inches)10-32mm
Max RPM15,200Adjusted according to safety standards

OEM/ODM Services

  • Exclusive corporate LOGO printing
  • Special abrasive ratio (such as stainless steel special formula)
  • Bulk packaging solutions (blister/carton/wooden pallet)

Global supply chain support

Main service markets:

  • Middle East: Saudi Arabia, Oman industrial zone projects
  • Southeast Asia: Vietnam, Malaysia manufacturing bases
  • South America: Sao Paulo, Brazil, machining industry belt
  • Europe: Polish and Italian metal processing companies

Wholesale policy:

  • Standard MOQ 100,000 pieces (negotiable tiered pricing)
  • FOB/CIF terms support
  • Third-party inspection service (SGS/BV)

Quality benchmarking and disclaimer

The technical indicators of this product refer to the Norton grinding wheels industrial standard, and some application scenarios can replace angle grinder discs for metal. Disclaimer: The third-party brands mentioned in the article are for technical reference only. Qing Yang® is an independent manufacturer and has no commercial relationship with the brands mentioned.
